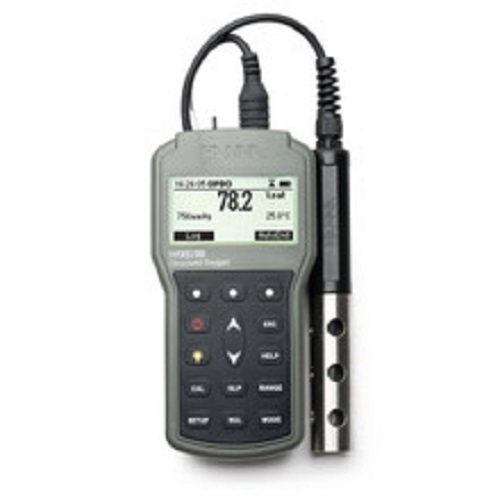

The HI98198 Optical Dissolved Oxygen Meter makes measuring the concentration of dissolved oxygen hassle-free. Optical DO technology doesn’t require a minimum flow rate, so there is less drift in your readings. Perfect for the field or for the laboratory, the Quick Connect probe requires no membranes, no filling solution, and no warm-up time so you can measure without hesitation. Your meter comes complete in a rugged, custom carrying case for easy transportation.
Optical DO technology for fast and stable readings, even in tough environments.
Digital probe with Smart Cap Technology eliminates costly, tiresome membranes and solutions.
An IP67-rated waterproof, rugged body makes this portable meter ideal for field use.
HI98198 measures dissolved oxygen levels in water using enhanced optical dissolved oxygen technology to ensure high levels of accuracy. With built-in methods and calculations for the measurement of Biological Oxygen Demand (BOD), Oxygen Uptake Rate (OUR), and Specific Oxygen Uptake Rate (SOUR), there is no need for manual conversions.
Kami menjual berbagai macam alat uji kualitas air / water analysis. Termasuk di antaranya : pH Meter, DO Meter, Turbidity Meter, Spectrophotometer, COD, BOD Meter, dll.
HI98198 Optical DO Meter :
Specification Name
Detail
sku
HI98198
Temperature Range
-5.0 to 50.0 °C (23 to 122 °F)
Temperature Resolution
0.1 °C (0.1 °F)
Temperature Accuracy (@25°C/77°F)
±0.3 °C (±0.4 °F)
Do Range
0.00 to 50.00 mg/L / 0.0 to 500.0% saturation
DO Accuracy (@25°C/77°F)
1.5% of reading ± 0.01mg/L for 0.00-20.00mg/L 5% of reading for 20.00-50.00mg/L 1.5% of reading ±0.1% for 00-200.0% 5% of reading for 200.0-500.0%
Barometric Pressure Range
420 to 850 mmHg
Barometric Pressure Resolution
1 mmHg
Barometric Accuracy
±3 mmHg within ±15% from the calibration point
Barometric Pressure Compensation
Single point anywhere within pressure range
Salinity Compensation
Automatic from 0 to 70 PSU (manually set)
Altitude Compensation
Automatic from 420 to 850 mmHg
Temperature Compensation
Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F)
Calibration
• One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L.
Log Feature
On demand with 4000 records capability
Connectivity
USB-C
GLP
Yes- includes last 5 calibrations
Power Supply
1.5V AA batteries (4 pcs.) approx.
Power Consumption
200 hours of continuous use without backlight (50 hours with backlight)
Environment
0 to 50 °C (32 to 122 °F) max. RH 100%
Dimensions
185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight
(with batteries) 450 g (15.9 oz)
Ordering Information
Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13’4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable.
HI98198 DO Meter Hanna Instruments
The HI98198 Optical Dissolved Oxygen Meter makes measuring the concentration of dissolved oxygen hassle-free. Optical DO technology doesn’t require a minimum flow rate, so there is less drift in your readings. Perfect for the field or for the laboratory, the Quick Connect probe requires no membranes, no filling solution, and no warm-up time so you can measure without hesitation. Your meter comes complete in a rugged, custom carrying case for easy transportation.
HI98198 measures dissolved oxygen levels in water using enhanced optical dissolved oxygen technology to ensure high levels of accuracy. With built-in methods and calculations for the measurement of Biological Oxygen Demand (BOD), Oxygen Uptake Rate (OUR), and Specific Oxygen Uptake Rate (SOUR), there is no need for manual conversions.
Deskripsi
Jual HI98198 DO Meter Hanna Instruments.
Kami menjual berbagai macam alat uji kualitas air / water analysis. Termasuk di antaranya : pH Meter, DO Meter, Turbidity Meter, Spectrophotometer, COD, BOD Meter, dll.
HI98198 Optical DO Meter :
