C-MAG HS7 Hot Plate Stirrer – IKA

Deskripsi

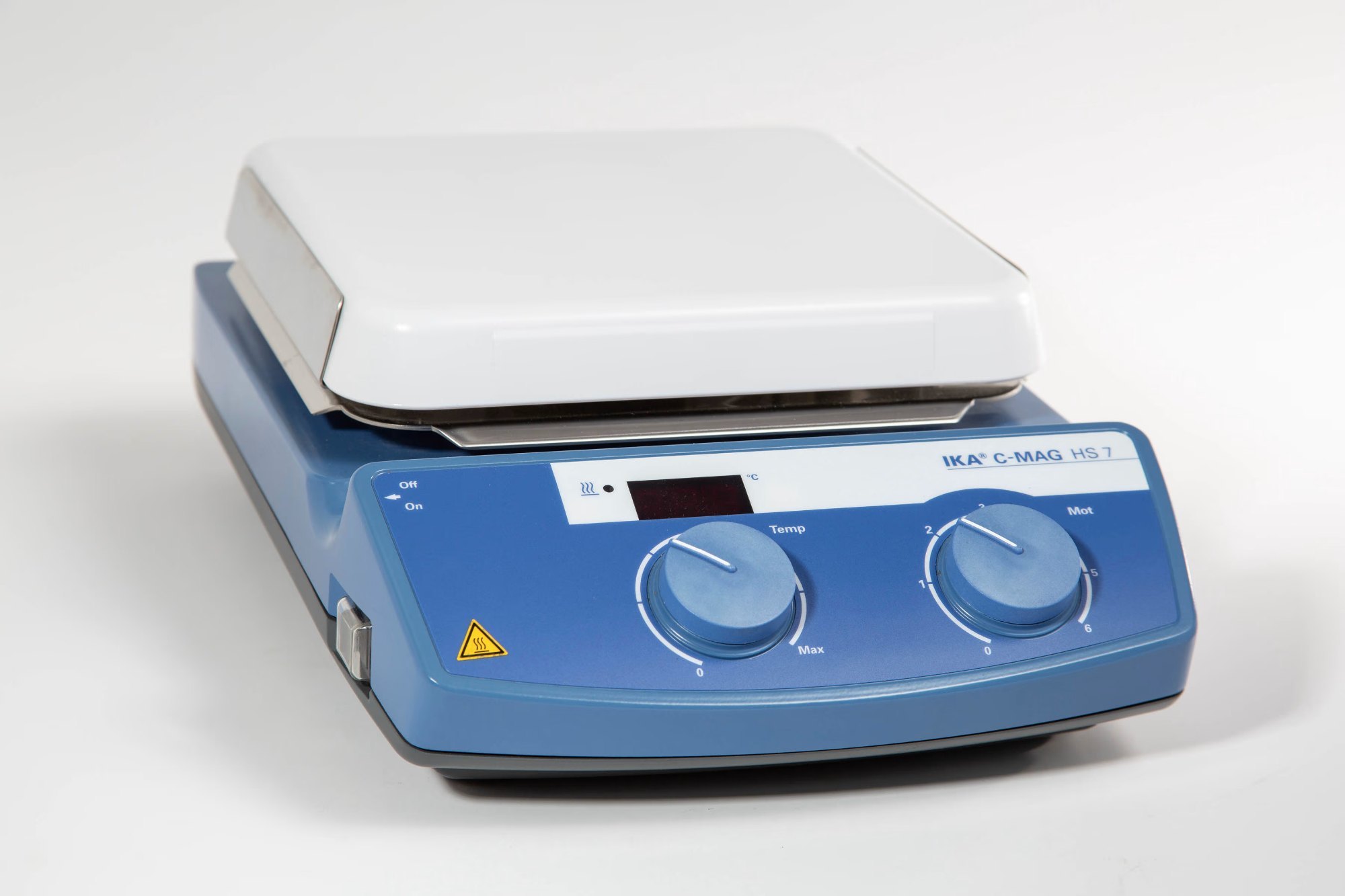

Magnetic Stirrer with Hot Plate model C-MAG HS7 – IKA

Kami menyediakan berbagai macam alat Laboratorium, pengiriman ke seluruh wilayah Indonesia. Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

– Powerful motor for stirring quantities of up to 10 l (H2O)

– Fixed safety circuit of 550 °C

– Hot Top indicator >> hot surface warning to prevent burns!

– Exact temperature setting via digital display (LED)

– Digital error code display

– Elevated control panel for protection against leaking liquids



Technical data of C-MAG HS7 Magnetic Stirrer with Hot Plate  :

– Heating rate heating plate : 5K/min

– Heating temperature max. : 500°C

– Heat output : 1000W

– Stirring bar length max. : 80mm

– Voltage : 230V

– Motor rating output : 1.5W

– Heating temperature min. : 50°C

– Fixed safety circuit : 550°C

– Weight : 5kg

– Power input : 1020W

– Depth : 330mm

– Width : 220mm

– Set-up plate dimensions : 180 x 180mm

– Height : 105mm

– Speed min. : 100rpm

– Connection for ext. temperature sensor : ETS-D5

– Set-up plate material : ceramic

– Heat control : LED

– Speed control : scale 0 – 6

– Protection class according to DIN EN 60529 : IP 21

– Direction of rotation : left

– Permissible ambient temperature min. : 5°C

– Speed max. : 1500rpm

– Stirring quantity max. per stirring position (H2O) : 10l

– Frequency : 50/60Hz

– Permissible relative humidity : 80%

– Permissible ambient temperature max. : 40°C

– Number of stirring positions : 1
