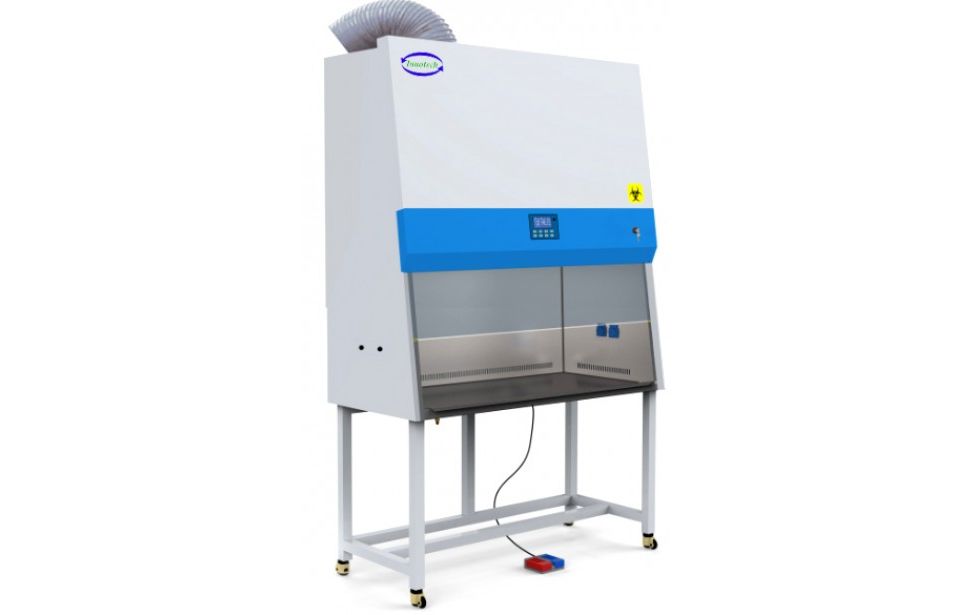

Biological Safety Cabinet Model : ISC-1500-B2-X by Innotech Lab.
Biological Safety Cabinet protection both sample and the operator, is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
BSC – Biological Safety Cabinet is widely used in microbiology research laboratories, hospitals, manufacturing facilities and other research and production environments.
Class II B2 Biological Safety Cabinet :
• Time reserve function.
• Motorized front window.
• ULPA filter life and UV life indicator.
• Automatic air speed adjustable with filter block.
• With memory function in case of power-failure.
• Work area surrounded by negative pressure, it can ensure maximum safety in work area.
• Most accessories are standard, which saves your money. There is no need to pay more.
• Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
• Remote control. All functions can be realized with it, making the operation much easier and more convenient.
• Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.
• Foot switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement
Specifications Biological Safety Cabinet Innotech :
|Internal Size (WxDxH)||1350x600x660mm|
|External Size (WxDxH)||1500x760x2250mm|
|Tested Opening||Safety Height 200 mm (8”)|
|Max Opening||500mm (20”)|
|Inflow Velocity||0.53±0.025 m/s|
|Down flow Velocity||0.33±0.025 m/s|
|HEPA Filter||Two, 99.999% efficiency at 0.3 μm,filter life indicator.|
|Front Window||Motorized,two-layer laminated toughened glass ≥ 5mm,anti UV.|
|Noise||NSF49 ≤ 61 dB / EN1246949 ≤ 58 dB|
|UV timer, UV life indicator, emission of 253.7 nanometers
for most efficient decontamination.
|Illuminating Lamp||LED Lamp|
|Waterproof Sockets||Two, total load of two sockets: 500W|
|Display||LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.|
|Airflow System||0% air recirculation, 100% air exhaust|
|Alarm||Abnormal airflow velocity; Filter replacement; Front window at unsafe height.|
|Exhaust Duct||4 meters PVC duct, Diameter : 300mm|
|Material||Work Zone: 304 stainless steel|
|Main Body: Cold-rolled steel with anti-bacteria powder coating.|
|Work Surface Height||750mm|
|Caster||Foot master caster|
|Power Supply||AC 220V±10%, 50/60Hz; 110V±10%, 60Hz|
|Standard Accessory||Illuminating lamp, UV lampx2,base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof socketsx2, pipe strapx2|
|Optional Accessory||Water and gas tap, Electric height adjustable base stand|
|Package||Main Body||1650x990x1810 mm|
|Exhaust Blower (WxDxH)||970x810x630 mm|
