Binocular / Biological Microscope

Binocular Microscope CS-Series Carton Microscope

Biological / Binocular Microscope – Carton

Kami menyediakan paket lengkap untuk kebutuhan Alat uji Laboratorium mikrobiologi Anda. Pengiriman ke seluruh Indonesia.

Segera hubungi Bagian Marketing kami : 0818-822-488 untuk mendapatkan info harga terbaru.

Kategori: , , Tag: ,

Deskripsi

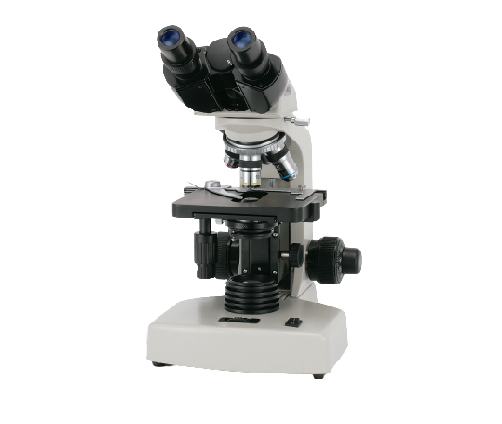

Binocular / Biological Microscope – Carton.

Sangat cocok untuk kebutuhan Laboratorium Mikrobiologi dan medical. Tersedia berbagai model sesuai dengan kebutuhan laboratorium Anda.

General Features
◆ Viewing Head:
360°Rotatable Siedentopf binocular head with 30°inclined eyepiece tubes. Large interpupillary distance adjust-able from 48mm through 75mm. A diopter adjustment ring is provided on the left eyepiece tube.
◆ Eyepieces:
Wide Field 10x Eyepiece, F.N. 18, Eyepoint 18, with retainer ring for attachment of reticle.
◆ Objectives:
DIN Acrhomat, Semi Plan, Plan, Plan Phase objectives or Infinity-corrected Plan objectives selectable.
◆ Revolving Nosepiece
Inward-facing (reversed) Quadruple Nosepiece on ball bearing mount with click-stop mechanism for small and accurate operation. Quintuple nosepiece is also available as option.
◆ Focusing:
Coaxial coarse and fine focusing adjustment with tension control ring and up-stopper to prevent accidental breakage of slide. 25mm coarse focusing range with 0.002mm fine focusing increments.
◆ Stage:
Large mechanical stage 141mm x 131mm, double plate layered, travelling through 76mm x 51mm with coaxial drive control on left hand. Right hand drive is also available as option. Two slides can be held at a time for comparison viewing.
◆ Stage Condenser:
Abbe type N.A. 1.25 condenser with iris diaphragm and swing-out filter holder, focusable by rack and pinion.
◆ Illuminator:
6V 20W halogen lamp or 3W LED with intensity control
◆ Packing:
Styrofoam container

General Specifications :

Model Head Eyepieces Objectives Condenser Stage Illuminator
CSB-10 Siedentopf binocular WF10x DIN Achromat NA1.25 Abbe, Mechanical 6V20W halogen
FN18 4x,10x,40xR,100XR Oil Rack & Pinion stage with Dimmer
CSB-10-LED Same as CSB-10 but with 3W LED with dimmer
CSB-10SP Siedentopf binocular WF10X FN18 DIN Semi Plan Achro NA1.25 Abbe, Mechanical 6V20W halogen
4x,10x,40xR(sealed), Rack & Pinion stage with Dimmer
100xR Oil
CSB-10SP-LED Same as CSB-10SP but with 3W LED with dimmer
CSB-10PH Siedentopf binocular WF10X FN18 DIN Phase 10x, NA1.25 Abbe, Mechanical 6V20W halogen
20x,40xR(sealed), Rack & Pinion stage with Dimmer
100xR Oil
CSB-10PH-LED Same as CSB-10PH but with 3W LED with dimmer
CST-10 Same as CSB-10, but with Trinocular head
CST-10-LED Same as CSB-10-LED but with Trinocular head
CST-10SP Same as CSB-10SP, but with Trinocular head
CST-10SP-LED Same as CSB-10PH-LED, but with Trinocular head
CST-10PH Same as CSB-10PH, but with Trinocular head
CST-10PH-LED Same as CSB-10PH-LED, but with Trinocular head
